Computer Aided Design (CAD) Services - 2D, 3D Modelling, Draughting, Engineering Design
Endless capabilities to bring your ideas to life.
DEVELOPMENT, DESIGN AND ANALYSIS
Our design process is accomplished by the use of advanced software capable of producing and replicating highly complex models and simulations.
The talent of our engineers makes all we do possible by utilising the software to its fullest potential.
Some of the programs may include:
PTC Creo
PTC Creo FEA Package
Autodesk Inventor
Autodesk FEA Package
SolidWorks
Solid Edge
Microsoft Office Suites such as Word, Excel, Project, and PowerPoint for project management and documentation
Whilst these are our main avenues of development, many of our engineers and designers have extensive experience (with certifications), in alternate CAD and FEA software such as Solidworks and Ansys.
Although Creo is our main CAD software, we can produce STEP files to allow you to use the models within your desired package or 3D printer.
3D MODELLING
Computer aided design forms a large part of our work here at D3-UK Ltd.
Our team consists of highly experienced engineers with vast CAD experience, some of whom have plied their trade since before the advent of CAD, to produce the highest quality models and drawings.
Entrusting in our many years of experience, you can be confident that our designs will conform to the highest of engineering standards and practices from concept to conclusion.
DRAUGHTING AND DETAILING
Upon completion of the 3D model, we advance to the detailing/draughting stage. D3 prides itself at the level of draughting we carry out with every drawing checked twice by experienced senior engineers. Our drawings are produced to the highest standard in accordance with BS/ISO codes and have the ability to be manufactured globally.

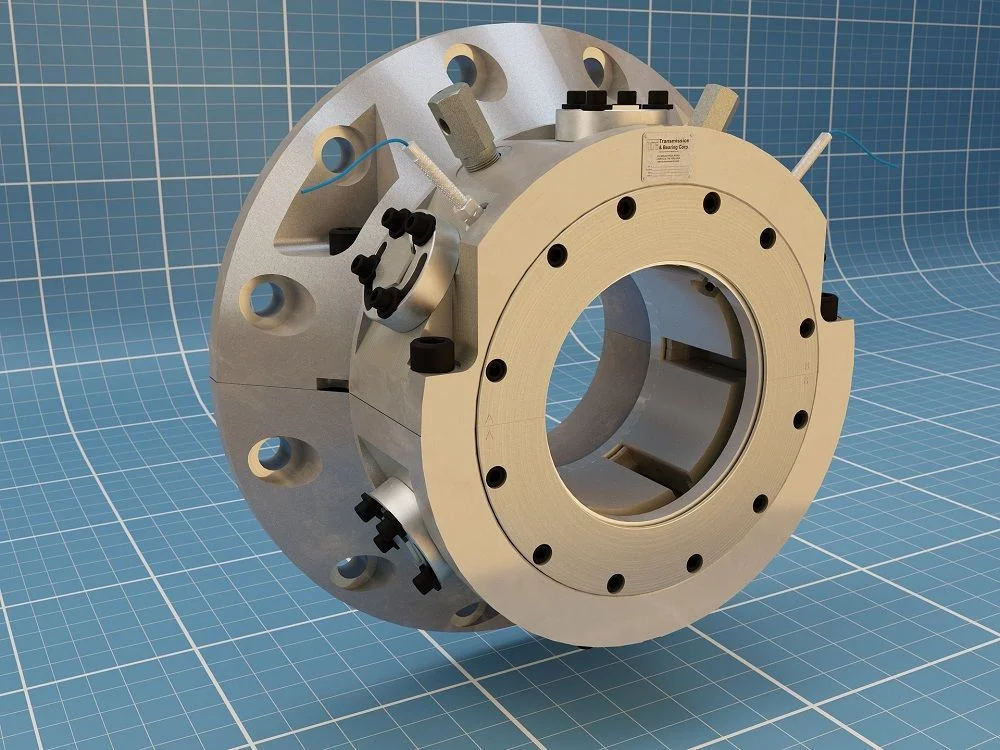

RENDERING
Renderings are computer generated graphics to show the image of the 3D model/tool created at D3. This helps provide our clients high-res images of their products before they have been made, and can be a great sales & marketing tool.

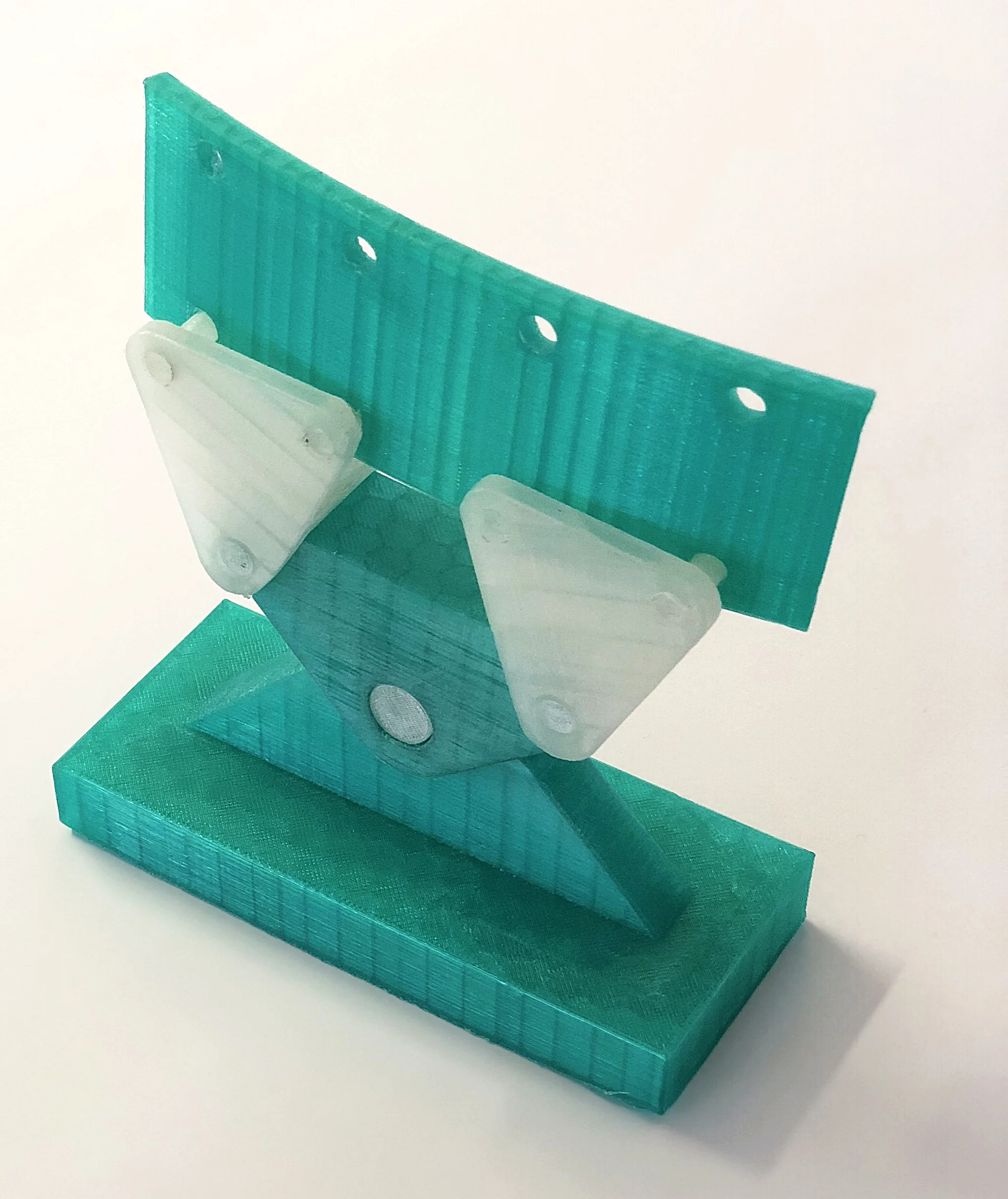

Rapid Prototyping
Here at D3, we have our own rapid prototyping machine. This allows us to print our CAD models to give our clients a better understanding of the final product before it goes into manufacture.
